HA/DR

Always On, log shipping and replication — one status view for your whole fleet.

The HA/DR screen summarises high availability and disaster recovery for every server: Always On availability groups, distributed AGs, log shipping and replication, with a Data Status showing whether collection succeeded. Open Details on any server for tabs covering Always On AG, Log Shipping and Replication.

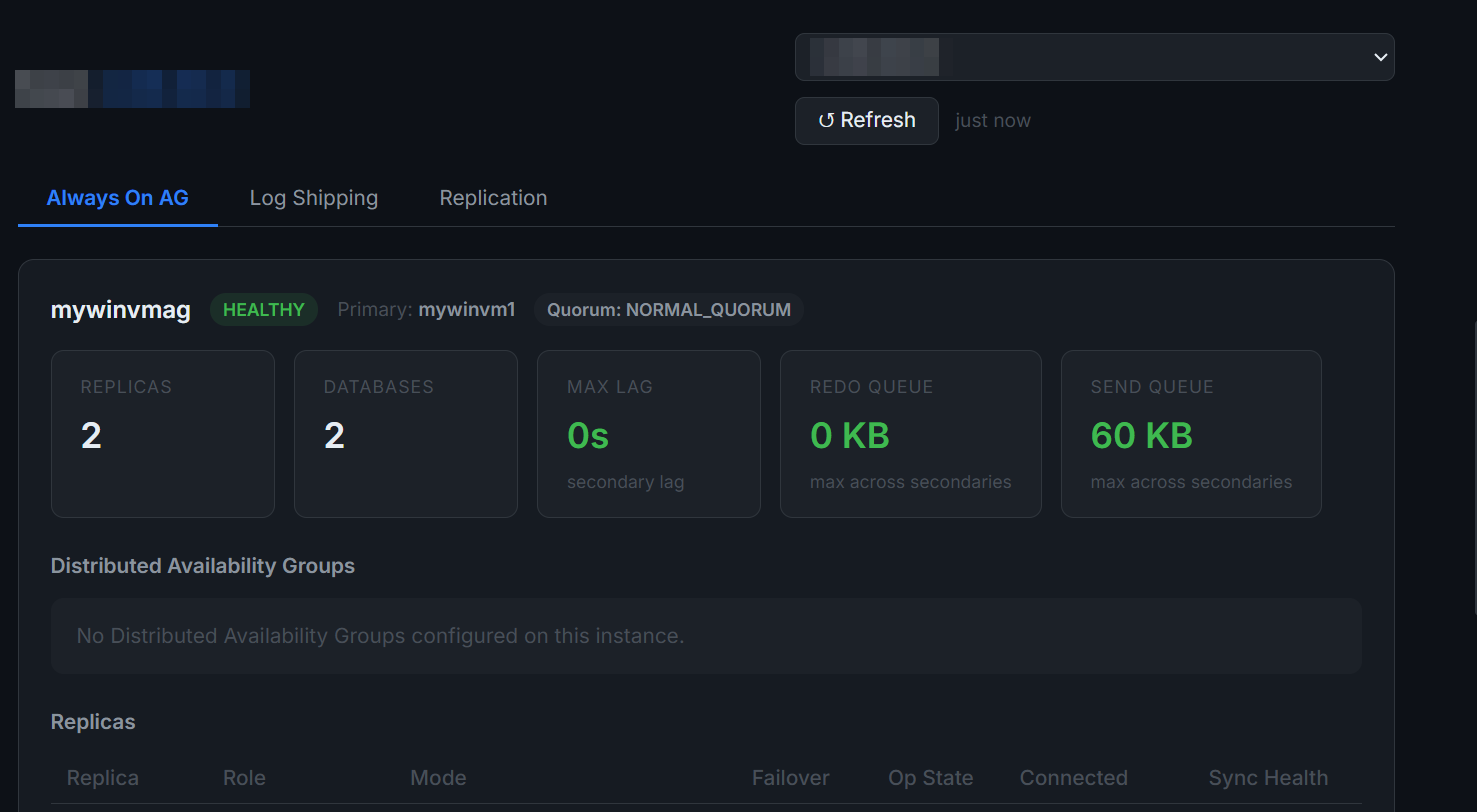

Always On AG detail: health, quorum, lag and queues

what you get

What you see on this screen

1

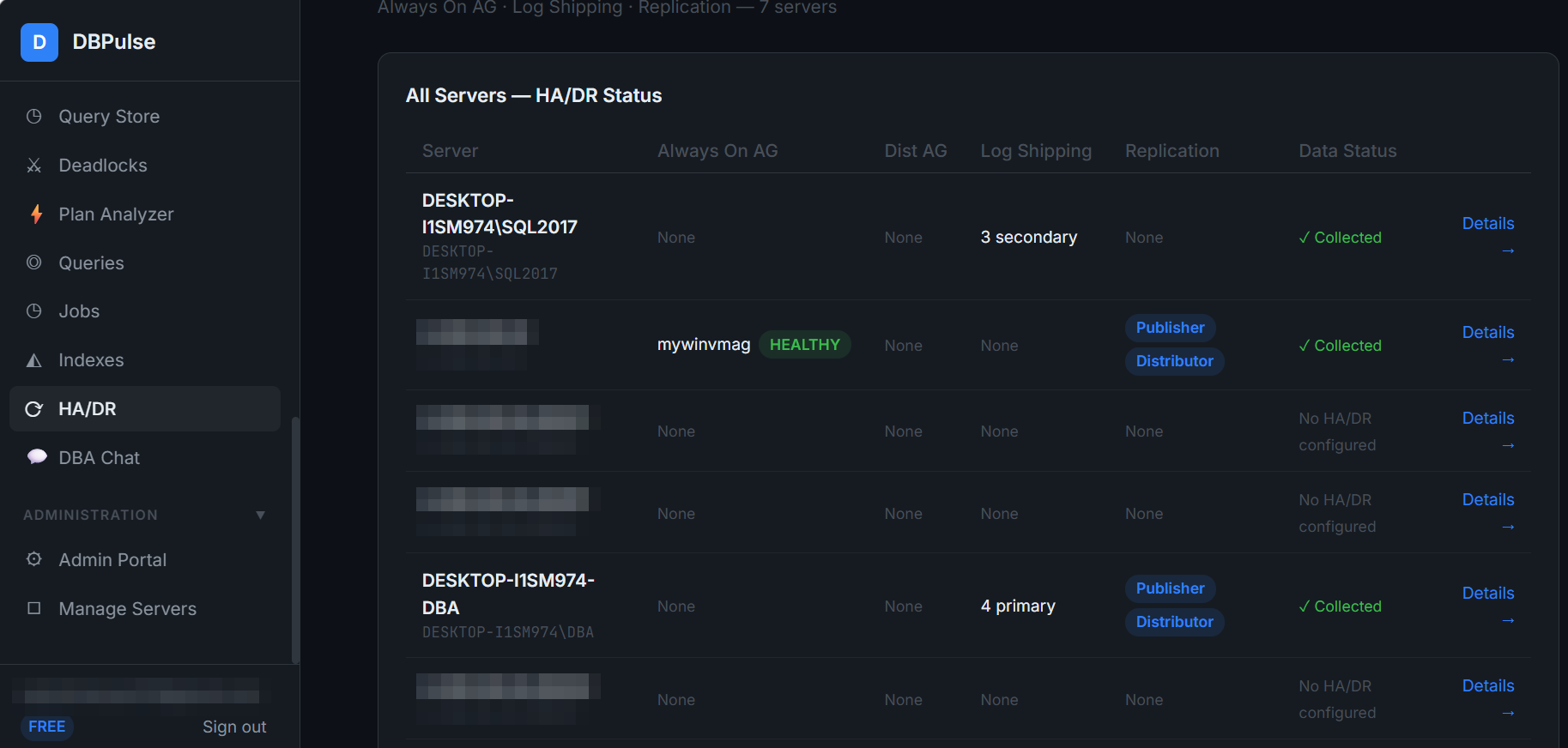

One table for the fleetEach server shows its Always On AG (with a health badge), Dist AG, log shipping role (for example “3 secondary” or “4 primary”), replication role (Publisher / Distributor) and whether data was collected. Servers with none show “No HA/DR configured”.
2
Always On detailAvailability group health, primary replica, quorum state, replica and database counts, max lag, redo queue and send queue.
3

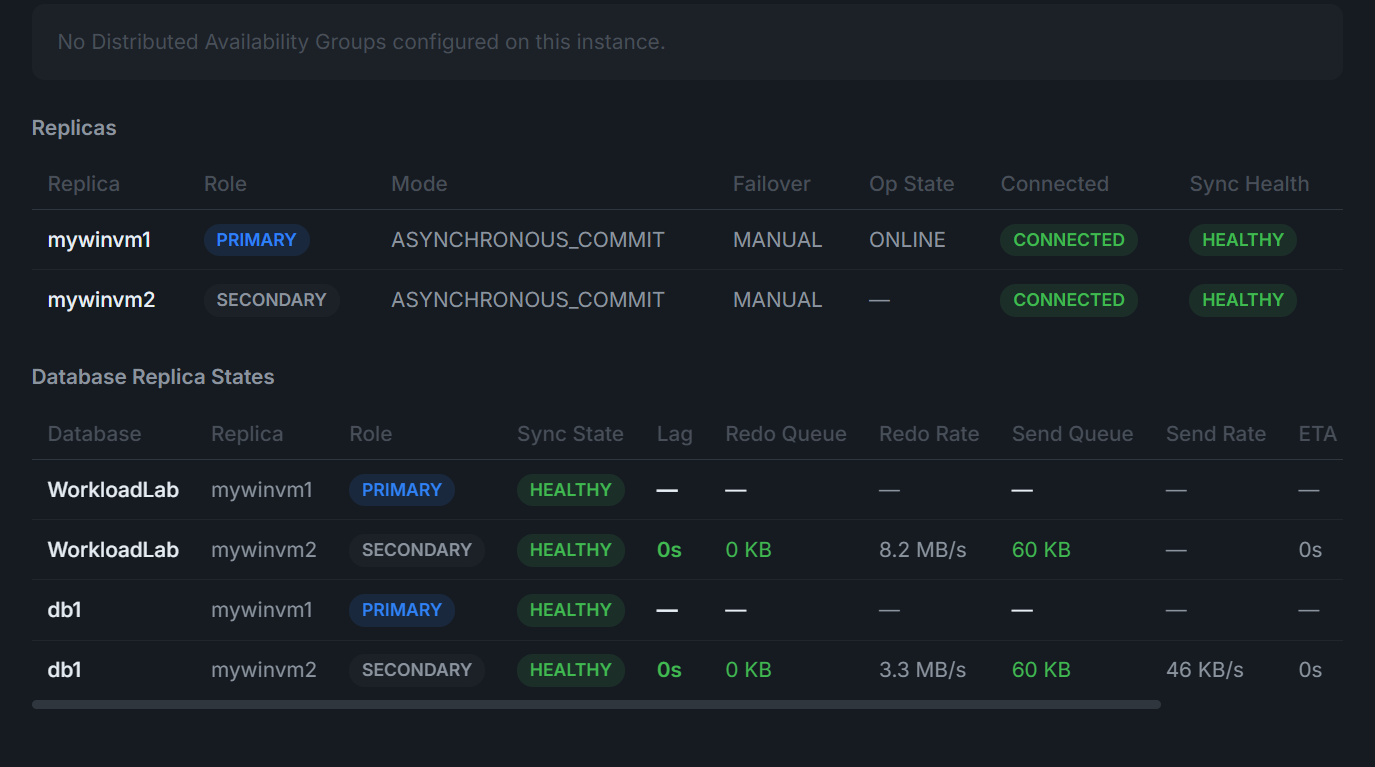

Replica and database statesPer replica: role, commit mode, failover mode, operational state, connection and sync health. Per database replica: sync state, lag, redo and send queues and rates, and ETA.
